Loading Dock Seal & Shelter Repair in Wichita
Repairing and replacing loading dock seals and shelters: the foam pads, curtains and shelter frames that close the gap between a trailer and the building. Fixing them stops conditioned air loss, water ingress and pest entry at the dock.
We are still finalising the local company for this trade. Send your project and we will route it as soon as that is set.
The short version
Loading Dock Seal & Shelter Repair, explained
A dock seal is a wear part with a predictable life, and it is usually replaced later than it should be. Once the foam has taken a compression set or the fabric has torn through, the opening is no longer closed: conditioned air leaves, weather and pests get in, and in a temperature-controlled facility that shows up on the energy bill and in product-handling compliance long before anyone raises a work order.
The most common mistake is replacing the whole unit when only the wear surface has failed. Many seals are designed so covers and wear pleats can be replaced over sound foam at a fraction of the cost of a new assembly. Getting an honest assessment of what has actually failed — the fabric, the foam, or the frame — is where the money is saved.

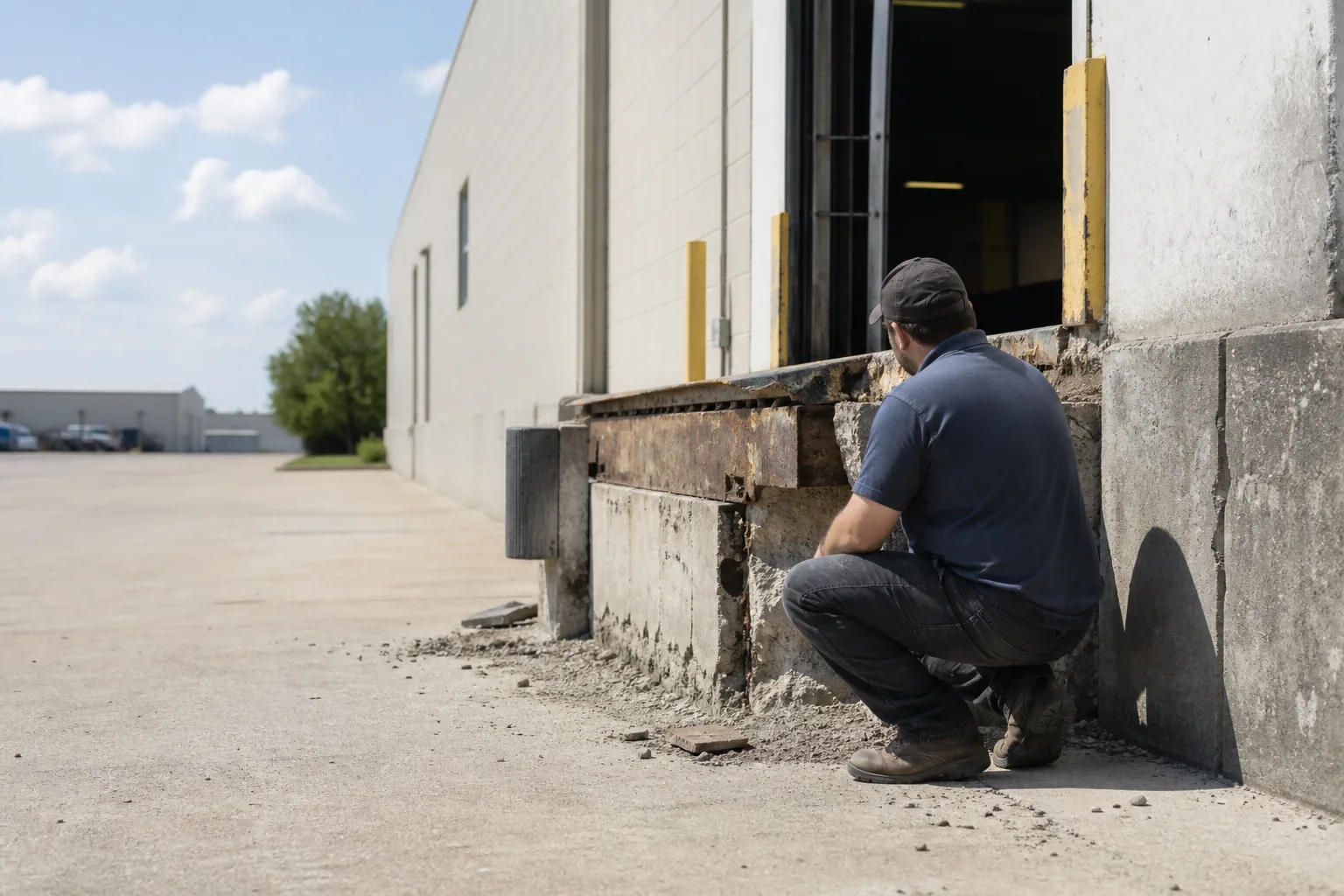

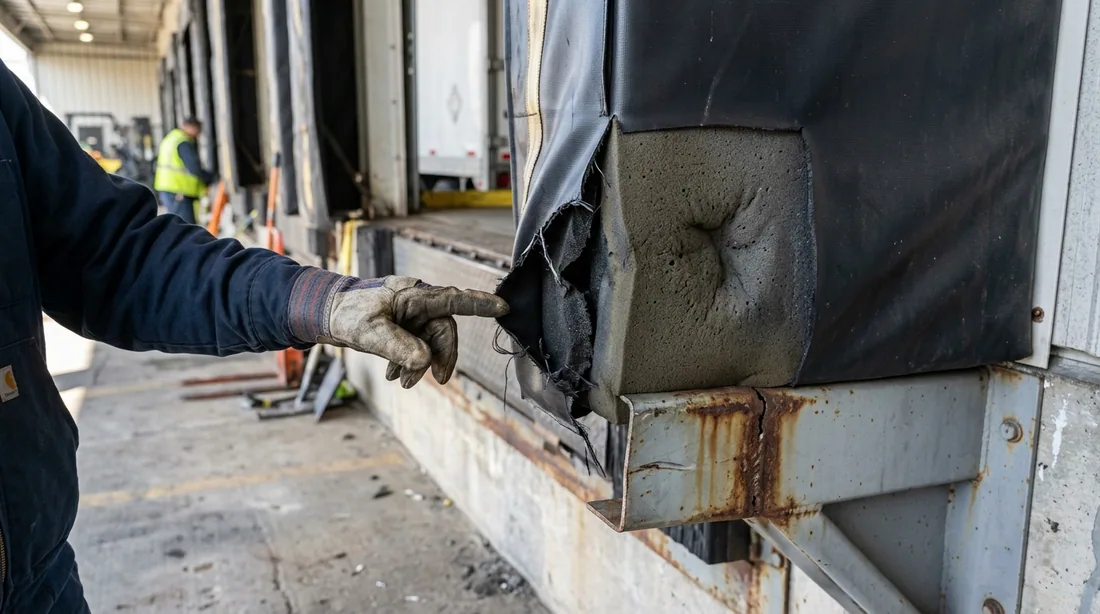

Assessment of what failed
Distinguishing a torn cover over sound foam from foam that has taken a permanent set, from a bent or corroded frame. These are three different repairs at very different costs.

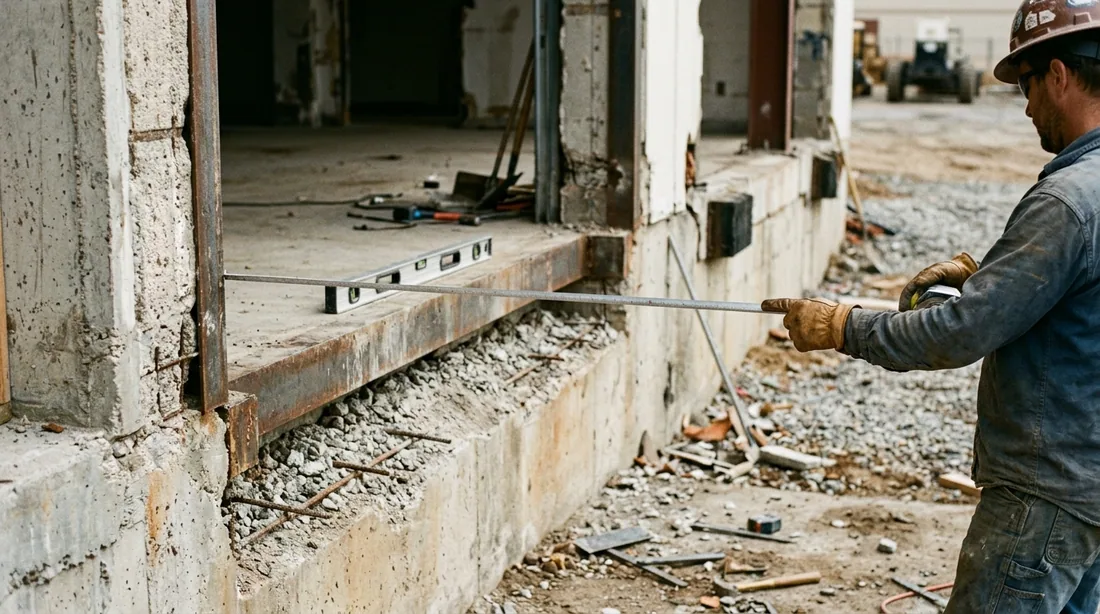

Measurement of the opening
Door dimensions, required projection and the mix of trailers using the position. These are built to the opening, which is why nobody publishes list pricing.

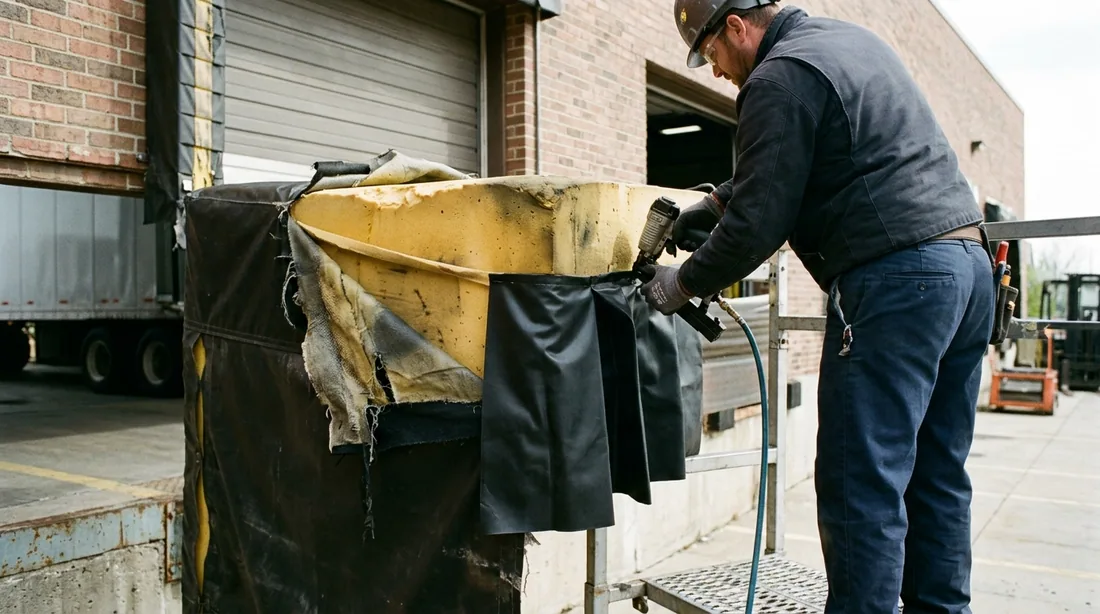

Cover and wear pleat replacement
Where foam is still resilient, replacing the fabric covers and wear pleats restores the seal at a fraction of full replacement cost.

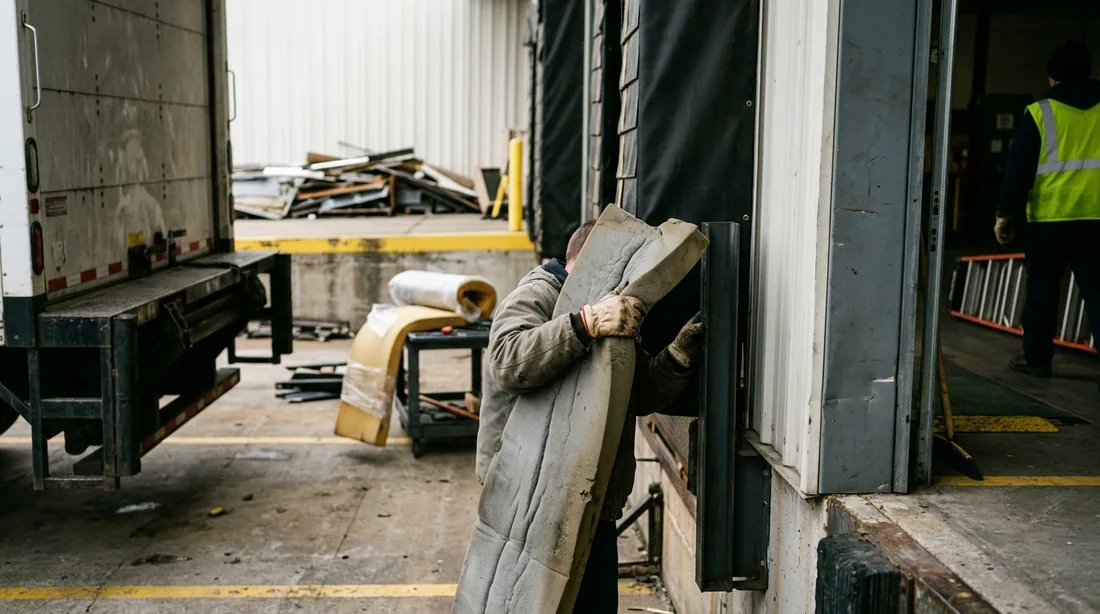

Foam or unit replacement
Compression-set foam no longer returns to shape and cannot seal regardless of the cover. At that point the pad or the whole assembly is replaced.

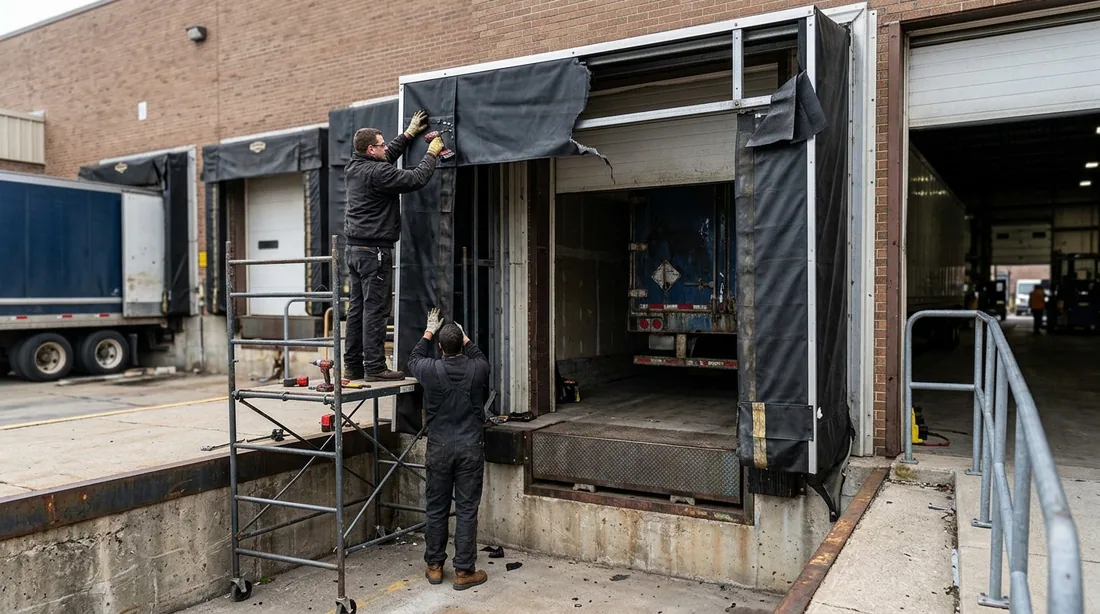

Head curtain and shelter frame
Head curtains tear first on high-cycle doors. Shelter frames, rigid or retractable, can be bent by trailer impact and may need straightening or section replacement.

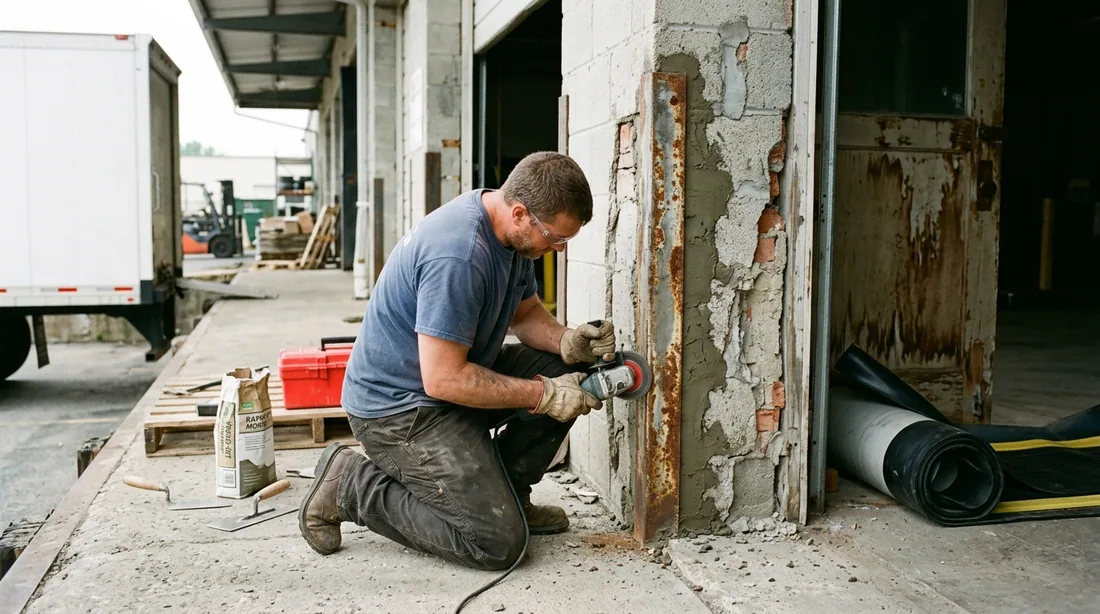

Mounting and substrate repair
Seals are only as good as what they are fixed to. Deteriorated masonry, rusted mounting angle or a damaged door jamb has to be addressed or the new unit will not hold alignment.
Budgeting
What it costs
We could not find credible published pricing for dock seal or shelter repair on a per-position basis, so we are not printing a range. Manufacturers and distributors build these to the customer's opening and publish 'call for quote' only. For scale, one contractor's published guide cites $10,000 and up for a full dock position retrofit using an existing pit, an average emergency service call around $437, and preventive maintenance contracts near $400 per bay per year. Those describe the whole dock position, not the seal, and should not be read as a seal price.
Wichita specifics
What is different about this work in Wichita
Local climate and building stock change how this job is specified. These figures come from the Census Bureau and NOAA climate normals for Wichita.
- With roughly 82.5 freeze-thaw cycles a year here, moisture that gets past a failed seal and into the mounting substrate expands each cycle, which is why deteriorating masonry around dock openings tends to be found alongside seals that keep drifting out of alignment.
- With mean January lows near 21.9°F, the conditioned-air loss through a failed seal is at its most expensive in winter, and it is worth quantifying that loss when a repair is being deferred on cost grounds.
Scoping
Do you actually need this done?
The most expensive mistake is paying for the wrong scope. Here is how the usual symptoms sort out.
Process
How the job runs
Survey the positions
Each dock assessed for what has actually failed, with the door opening measured and the trailer mix noted. A survey covering all positions usually finds a mix of repair and replacement.
Specify to actual duty
Fabric weight, seal type and wear protection matched to how hard that position is worked, rather than applying one specification across a whole facility uniformly.
Schedule around operations
Positions taken out of service in sequence so shipping continues. This planning is usually the constraint rather than the labor itself.
Remove and prepare substrate
Old unit removed and the mounting surface inspected. Deteriorated masonry, corroded angle or a damaged jamb is repaired before the new unit goes on.
Install and verify closure
Unit fitted and checked against an actual trailer rather than by eye, confirming the seal closes at the top and both sides with the door in service position.
Common questions
Questions people ask
How much does dock seal repair cost?
We could not find credible published per-position pricing, and we would rather say so than print a number we cannot stand behind. Manufacturers build these to your opening dimensions and quote individually. For scale only, one contractor's published guide cites around $437 for an average emergency service call and roughly $400 per bay per year for preventive maintenance, with $10,000 and up for a complete dock position retrofit. Get a site survey.
Can a dock seal be repaired instead of replaced?
Frequently, yes, and it is worth insisting the question be answered before accepting a replacement quote. Many seals are designed so fabric covers and wear pleats can be replaced over foam that is still resilient. The test is whether the foam returns to shape after a trailer pulls away. If it does, you are likely looking at a recover rather than a replacement.
How long should a dock seal last?
It varies enormously with cycle count, trailer mix and how well the position is aligned, which is why manufacturers publish duty specifications rather than a lifespan. High-cycle doors with varied trailer heights wear seals dramatically faster than a position taking a few consistent deliveries a week. Specifying fabric weight and wear protection to the actual traffic is what most affects service life.
What is the difference between a dock seal and a dock shelter?
A seal uses compressible foam pads that the trailer presses against, which suits consistent trailer sizes and gives a tight closure. A shelter uses a frame with fabric curtains that drape over the trailer, accommodating a wider range of trailer sizes and allowing full access to the trailer's rear opening. Shelters cost more and are generally specified where the trailer fleet varies.
Is a failing dock seal really worth fixing promptly?
In a conditioned or temperature-controlled facility, yes, and the case is usually economic rather than cosmetic. An open gap at a dock leaks conditioned air continuously whenever a trailer is in place, and also admits water, dust and pests. Because the loss is invisible and continuous, it tends to go unquantified, which is precisely why these get deferred past the point where a cheap recover would have sufficed.
Next step
Get a real number for your project
Ranges only go so far. Someone has to look at the actual job.
